1. 标签使用

1.1. 现有字段不满足需求,给文章表等加字段,推荐使用自定义模型

不建议直接在数据库表里面加字段,建议使用自定义模型。拖拽生成,一键绑定,即可使用。

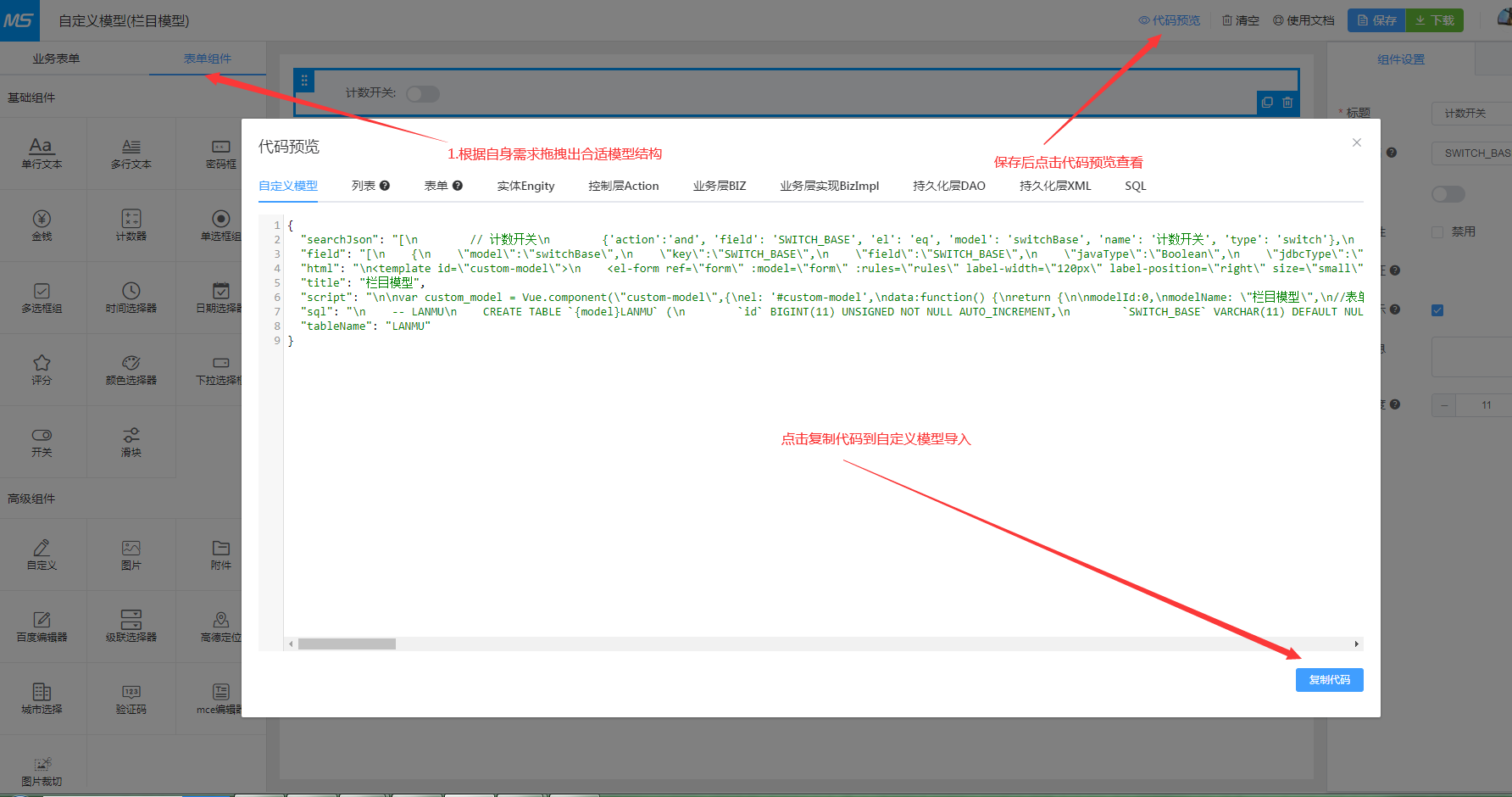

1.在代码生成器制作模型

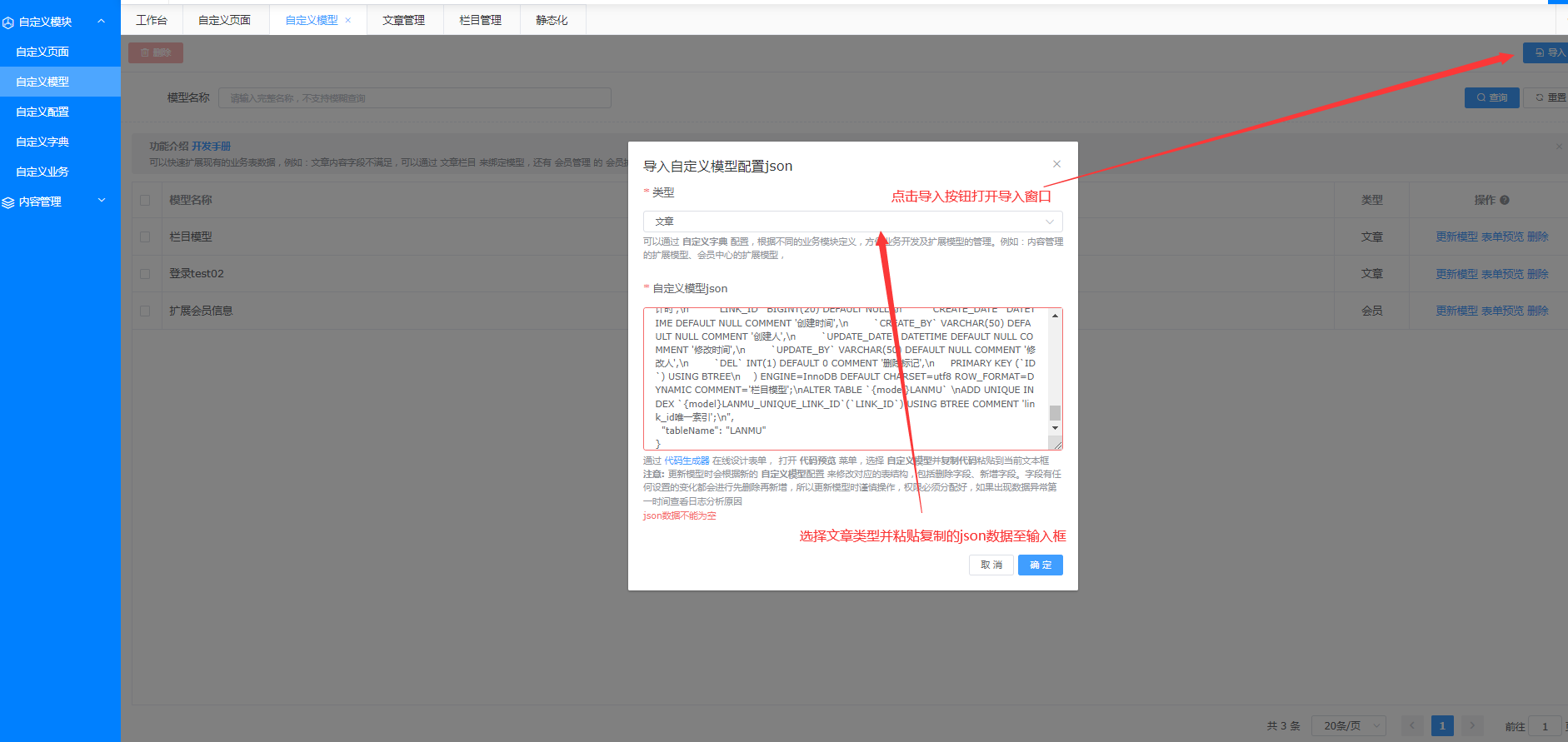

2.在自定义模型处导入模型json

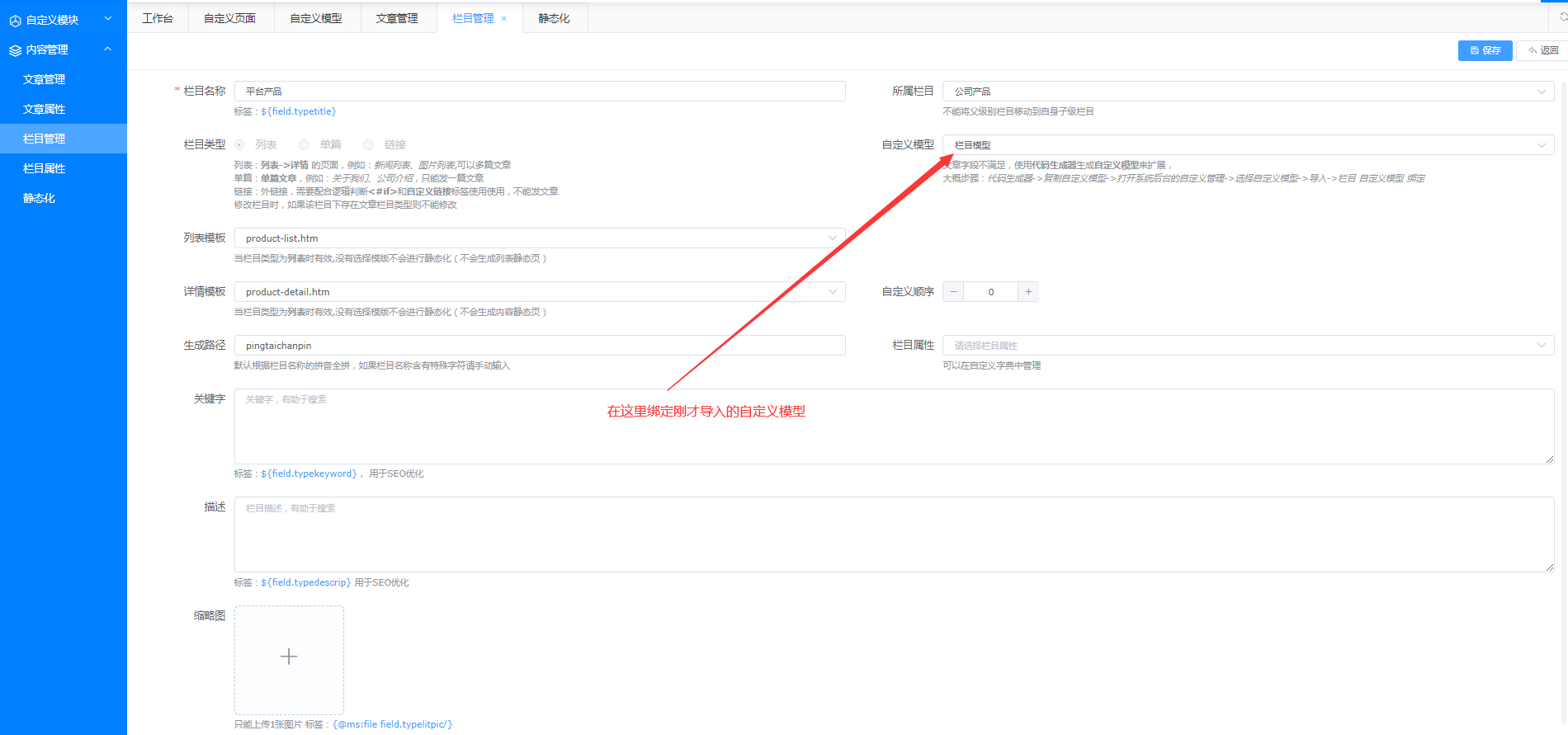

3.在栏目管理处绑定导入的模型

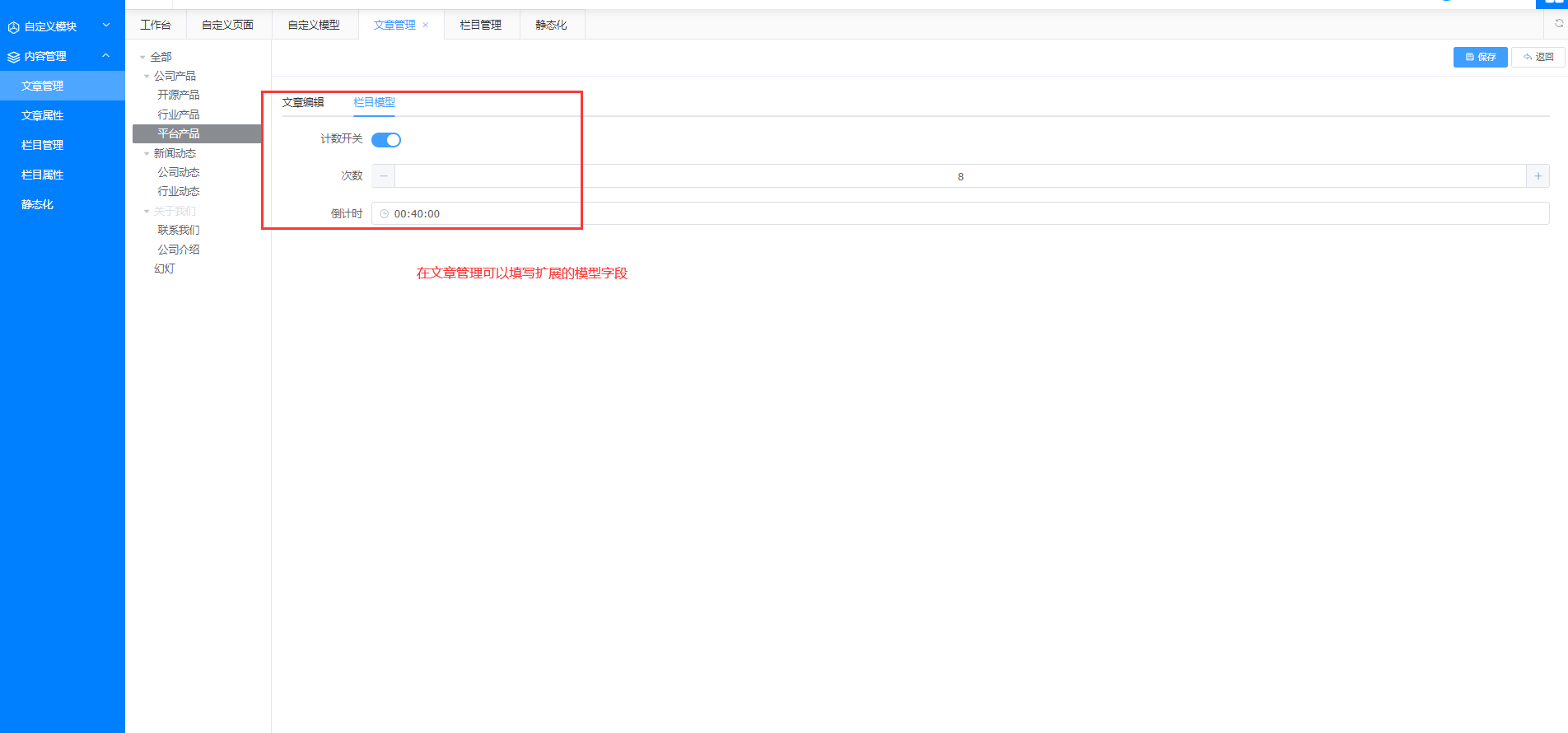

4.在文章管理处使用导入的模型

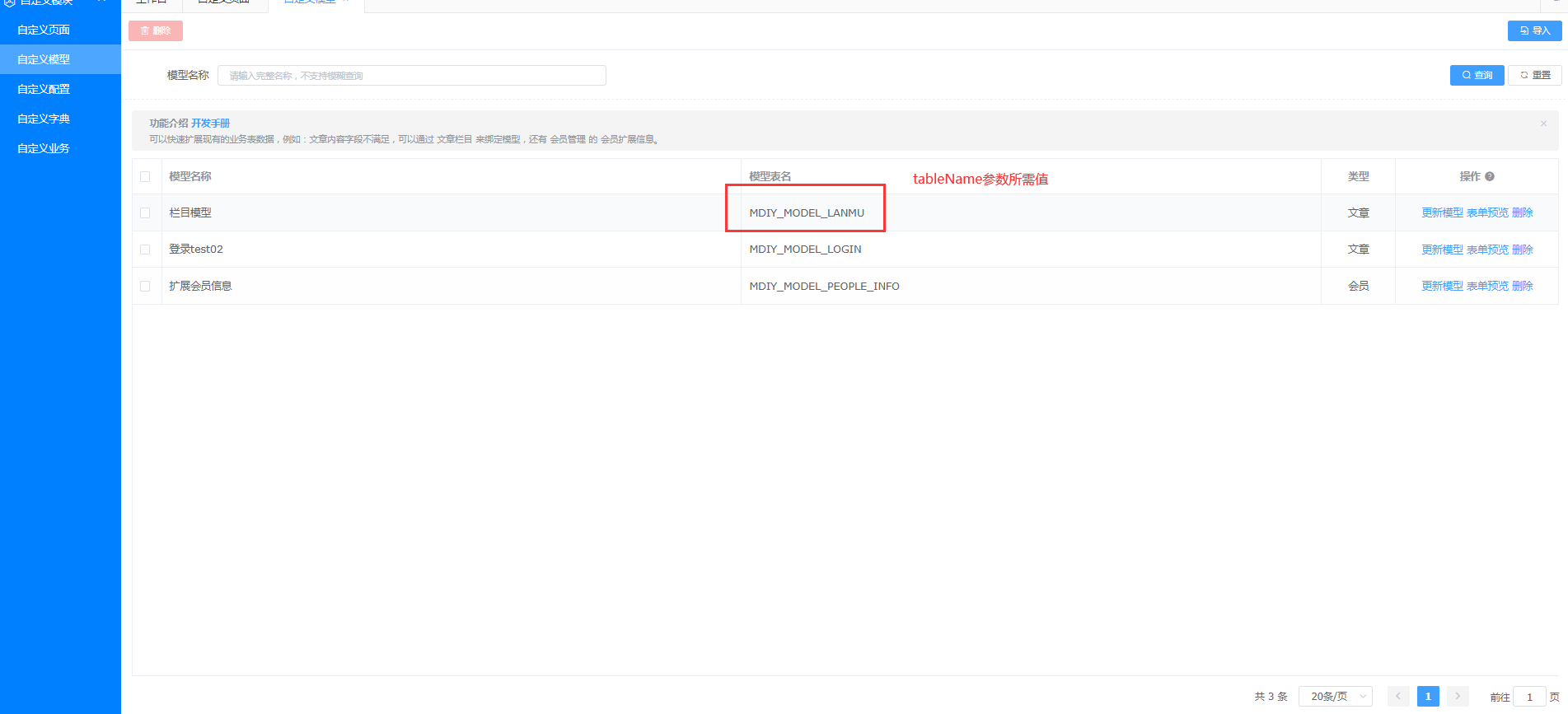

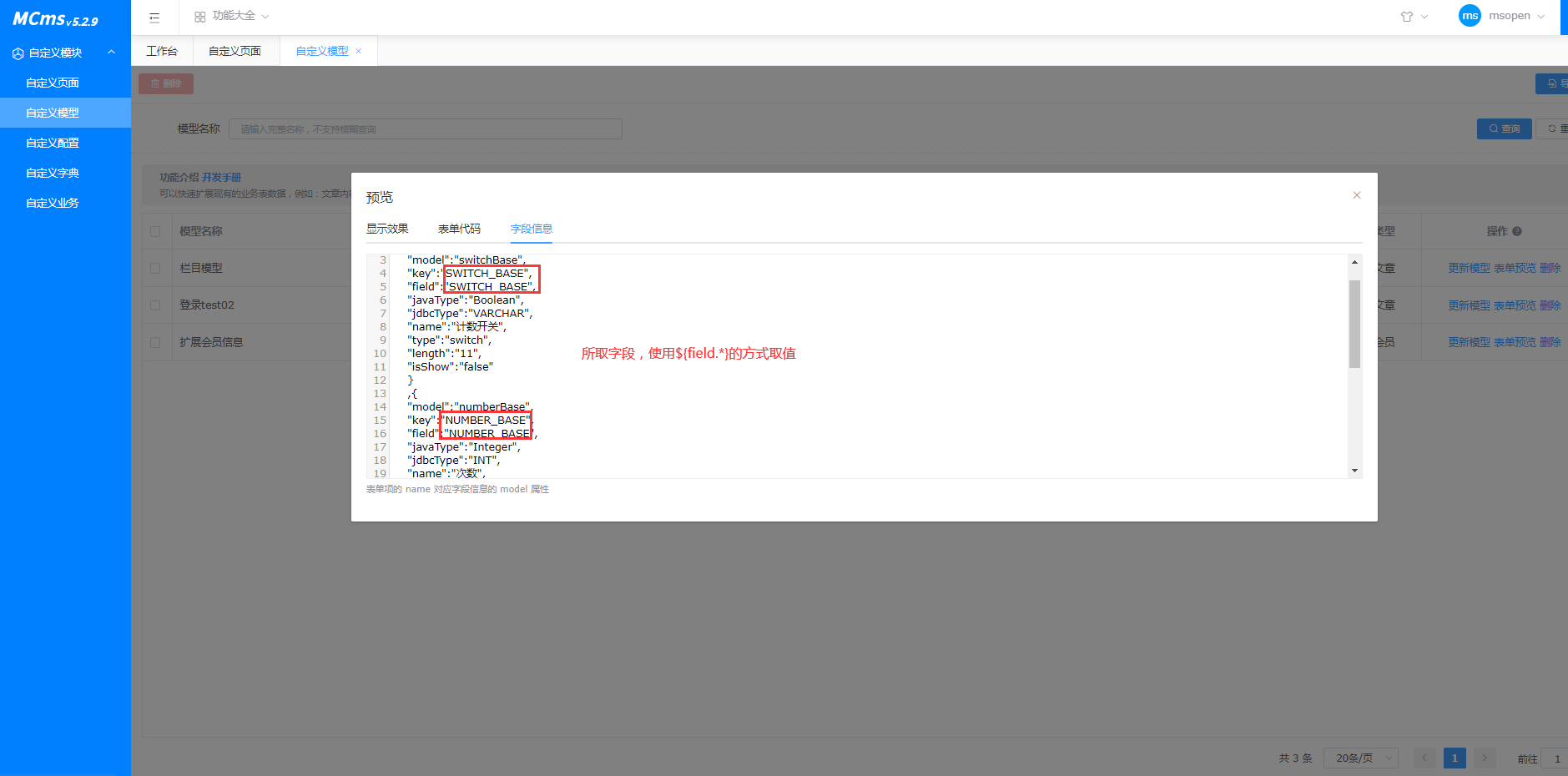

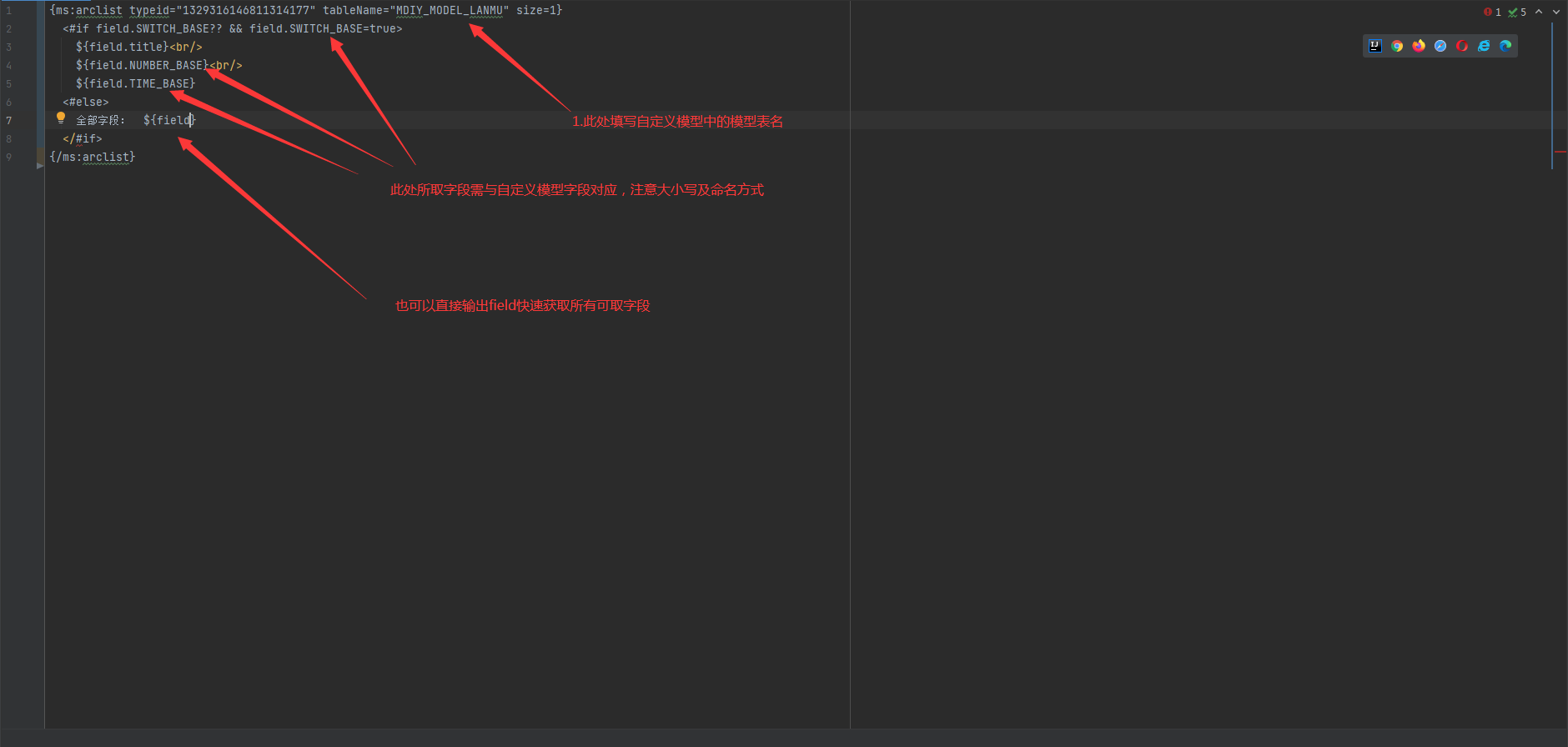

5.在模板中使用带自定义模型的标签,需先了解模板基本使用

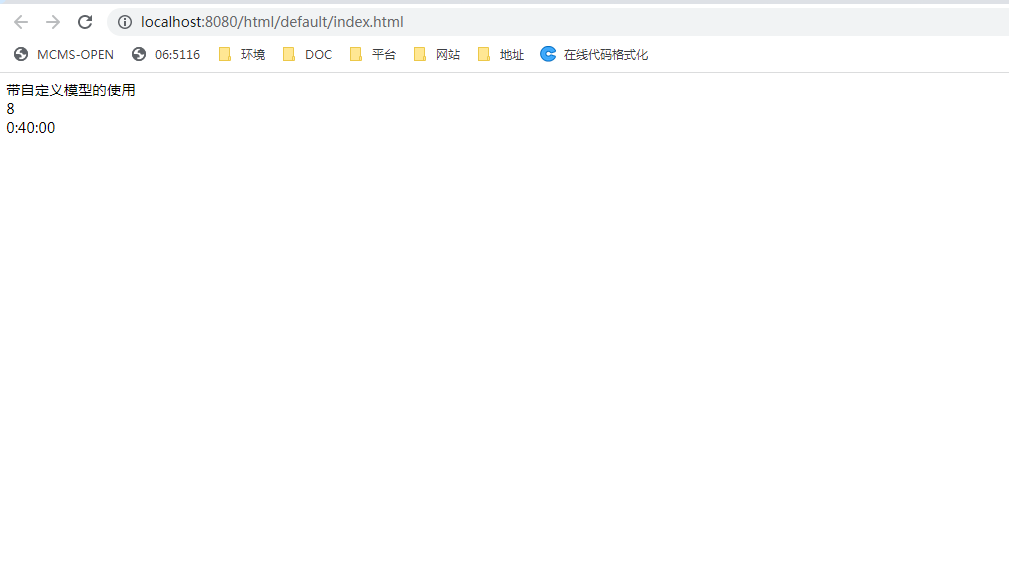

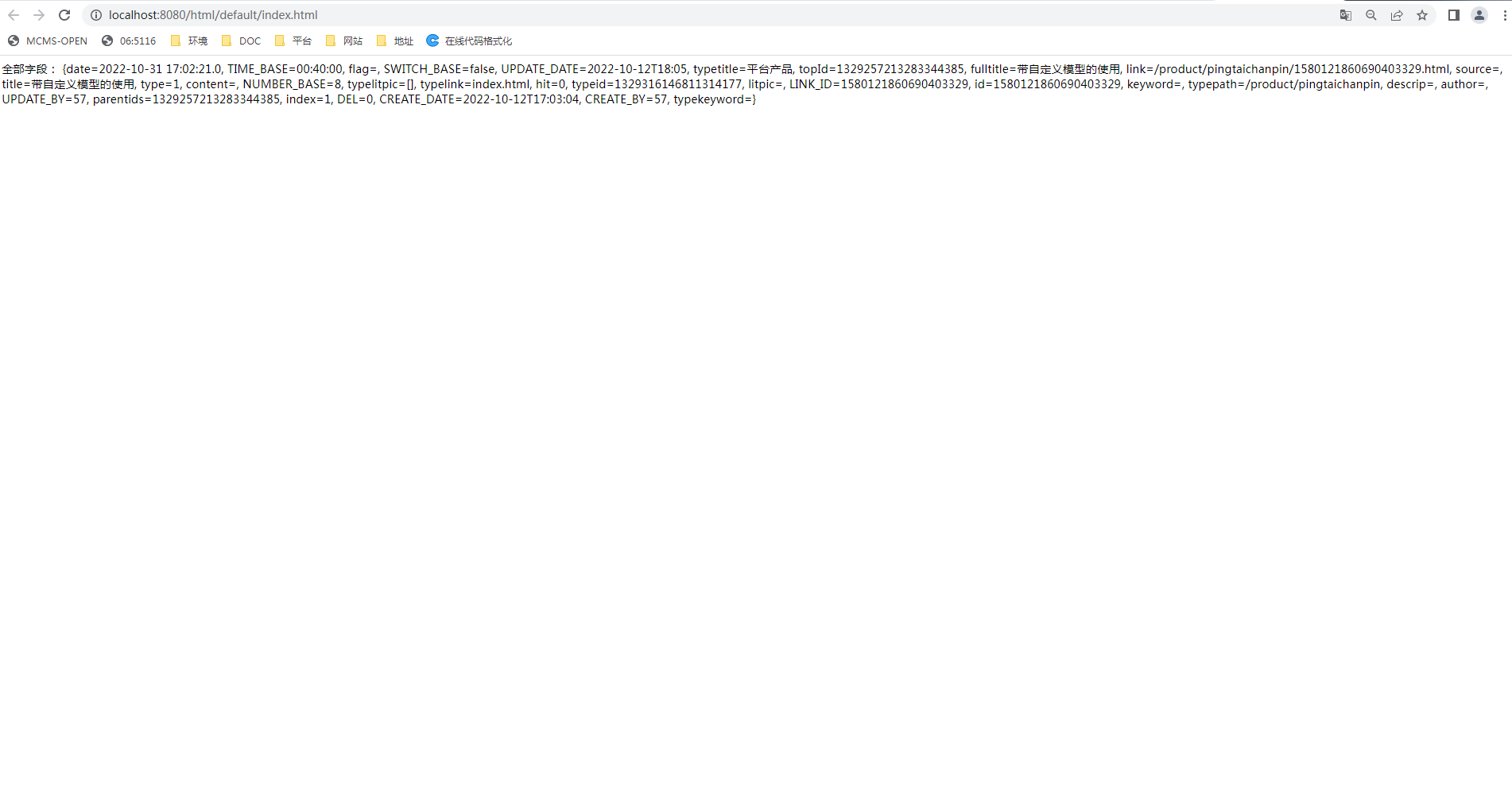

6.根据示例代码中 计数开关 字段控制输出内容,开、关效果分别如下

1.2. 扩展标签输出字段

[!tip]如果单纯是增加一个显示的属性,推荐使用自定义模型,简单使用,无需后台开发

场景举例:扩展的字段有需要处理的业务逻辑,这里以ContentEntity新增一个contentExtend属性为例

  1. 新增属性产生的基本修改,实体、xml等

  2. 标签修改

如果该属性需要在列表和详情展示,那么对应需要修改arclist标签和field标签(data标签按需)

这里以arclist标签为例
...
SELECT
  cms_content.id AS "id",
  content_title AS "title",
  content_short_title AS "shorttitle",
  content_author AS "author",
  content_source AS "source",
  content_out_link AS "outlink",
  content_tags AS "tags",
  content_extend AS "extend"  # 新增扩展字段属性
...
  1. 列表模板写法
{ms:arclist}
${field.title}---${field.extend}
{/ms:arclist}
  1. 栏目CategoryEntity扩展,比文章需要多一步添加实体属性
channel标签
...
cms_category.category_img as "typelitpic" ,
cms_category.category_ico as "typeico" ,
cms_category.category_extend as "typeextend", # 新增扩展字段属性
...
// CategoryEntity
...
/**
 * 获取栏目新增扩展字段属性 (标签使用) 这里的get后的属性名是上方扩展字段属性as的别名
 */
public String getTypeextend() {
    return this.categoryExtend;
}

[!tip] 对于二次开发的业务数据展示,不推荐新增标签获取,开发成本较高,推荐走接口获取

1.3. 自定义全局标签初始配置(开源5.4.3及以上支持)

  1. 在菜单管理导入自定义全局参数菜单json Alt text
    [{"createBy":"","id":"1821","updateBy":"57","updateDate":"2024-11-26 09:25:22","modelTitle":"自定义全局参数","modelDatetime":"2024-11-26 09:24:30","modelId":84,"modelUrl":"mdiy/tag/globalTag/config.do?modelId=1860892324126367745&isEditor=true","modelCode":"","isChild":"","modelIcon":"","modelSort":0,"modelIsMenu":1,"chick":0,"depth":1,"modelParentIds":"84","modelChildList":[{"id":"1822","modelTitle":"新增","modelDatetime":"2024-11-26 09:24:30","modelId":1821,"modelUrl":"mdiy:tag:save","modelSort":0,"modelIsMenu":0,"chick":0,"depth":2,"modelParentIds":"84,1821"},{"id":"1823","modelTitle":"编辑","modelDatetime":"2024-11-26 09:24:30","modelId":1821,"modelUrl":"mdiy:tag:update","modelSort":0,"modelIsMenu":0,"chick":0,"depth":2,"modelParentIds":"84,1821"},{"id":"1824","modelTitle":"查看","modelDatetime":"2024-11-26 09:24:30","modelId":1821,"modelUrl":"mdiy:tag:view","modelSort":0,"modelIsMenu":0,"chick":0,"depth":2,"modelParentIds":"84,1821"},{"id":"1825","modelTitle":"配置","modelDatetime":"2024-11-26 09:24:30","modelId":1821,"modelUrl":"mdiy:tag:config","modelSort":0,"modelIsMenu":0,"chick":0,"depth":2,"modelParentIds":"84,1821"}]}]

  2. 在数据库执行sql
INSERT INTO `mdiy_config` (`id`, `MODEL_ID`, `config_name`, `config_data`, `CONFIG_TYPE`, `update_date`, `update_by`, `create_date`, `create_by`, `del`, `NOT_DEL`, `APP_ID`) VALUES (1, '1860892324126367745', 'foot', '{\"timeEnd\":\"18:00:00\",\"timeBegin\":\"09:00:00\",\"ico\":\"[{\\\"url\\\":\\\"/upload/1/global/1872457333638361088.png\\\",\\\"name\\\":\\\"1869634627528175616.png\\\",\\\"uid\\\":1735263591501,\\\"status\\\":\\\"success\\\"}]\",\"qrCode\":\"[{\\\"url\\\":\\\"/upload/1/global/1872457360049893376.jpg\\\",\\\"name\\\":\\\"1869634658977067008.jpg\\\",\\\"uid\\\":1735263597758,\\\"status\\\":\\\"success\\\"}]\",\"modelId\":\"1860892324126367745\",\"tel\":\"19999999999\"}', 'tag', NULL, NULL, NULL, NULL, 0, 0, 'global');


INSERT INTO `mdiy_model` (`ID`, `model_json`, `model_table_name`, `model_name`, `model_id_type`, `model_type`, `model_field`, `model_custom_type`, `update_date`, `update_by`, `create_date`, `create_by`, `del`, `NOT_DEL`, `APP_ID`) VALUES (1860892324126367745, '{\"searchJson\":\"[\\n        //电话号码\\n        {\'isSearch\':\'\',\'action\':\'and\', \'field\': \'TEL\', \'el\': \'eq\', \'model\': \'tel\', \'name\': \'电话号码\', \'type\': \'input\'},\\n]\\n\",\"isWebCode\":false,\"form\":\"[{\\\"type\\\":\\\"input\\\",\\\"name\\\":\\\"电话号码\\\",\\\"icon\\\":\\\"icon-danhangwenben\\\",\\\"pmofAllowUpdate\\\":1,\\\"pmofAllowGenerater\\\":1,\\\"pmofAllowRepet\\\":1,\\\"pmofAllowValidator\\\":1,\\\"pmofAllowEmpty\\\":0,\\\"pmofLength\\\":255,\\\"pmofType\\\":\\\"VARCHAR\\\",\\\"pmofJavaType\\\":\\\"String\\\",\\\"pmofSort\\\":0,\\\"likeSearch\\\":true,\\\"help\\\":\\\"标签:{ms:global.foot.tel/}\\\",\\\"options\\\":{\\\"isShow\\\":true,\\\"isFk\\\":false,\\\"readonly\\\":false,\\\"width\\\":\\\"100%\\\",\\\"repeat\\\":false,\\\"defaultValue\\\":\\\"\\\",\\\"clearable\\\":true,\\\"isLength\\\":true,\\\"lengthConfig\\\":{\\\"min\\\":0,\\\"max\\\":255},\\\"required\\\":false,\\\"dataType\\\":\\\"string\\\",\\\"isPattern\\\":false,\\\"isDataType\\\":false,\\\"pattern\\\":\\\"\\\",\\\"placeholder\\\":\\\"请输入电话号码\\\",\\\"disabled\\\":false,\\\"table\\\":{\\\"search\\\":false,\\\"show\\\":true,\\\"align\\\":\\\"left\\\"}},\\\"key\\\":\\\"INPUT_OFDLN\\\",\\\"model\\\":\\\"TEL\\\",\\\"rules\\\":\\\"[{\\\\\\\"min\\\\\\\":0,\\\\\\\"max\\\\\\\":255,\\\\\\\"message\\\\\\\":\\\\\\\"电话号码长度必须为0-255\\\\\\\"}]\\\"},{\\\"type\\\":\\\"time\\\",\\\"name\\\":\\\"底部服务时间\\\",\\\"icon\\\":\\\"icon-shijian-xianxing\\\",\\\"pmofAllowUpdate\\\":1,\\\"pmofAllowGenerater\\\":1,\\\"pmofAllowRepet\\\":1,\\\"pmofAllowValidator\\\":1,\\\"pmofAllowEmpty\\\":0,\\\"pmofType\\\":\\\"TIME\\\",\\\"pmofJavaType\\\":\\\"Date\\\",\\\"pmofSort\\\":0,\\\"pmofLength\\\":0,\\\"likeSearch\\\":false,\\\"help\\\":\\\"标签:{ms:global.foot.timeBegin/} -\\\\n{ms:global.foot.timeEnd/} \\\\n \\\",\\\"options\\\":{\\\"isShow\\\":true,\\\"defaultValue\\\":null,\\\"readonly\\\":false,\\\"disabled\\\":false,\\\"editable\\\":true,\\\"clearable\\\":true,\\\"placeholder\\\":\\\"请选择底部服务时间\\\",\\\"startPlaceholder\\\":\\\"开始时间\\\",\\\"endPlaceholder\\\":\\\"结束时间\\\",\\\"isRange\\\":true,\\\"arrowControl\\\":true,\\\"format\\\":\\\"HH:mm:ss\\\",\\\"required\\\":false,\\\"width\\\":\\\"100%\\\",\\\"table\\\":{\\\"search\\\":false,\\\"show\\\":true,\\\"width\\\":120,\\\"align\\\":\\\"center\\\"},\\\"label\\\":\\\"开始时间\\\",\\\"attachField\\\":[{\\\"type\\\":\\\"time\\\",\\\"name\\\":\\\"结束时间\\\",\\\"model\\\":\\\"TIME_END\\\",\\\"key\\\":\\\"1733127110000_98951\\\",\\\"pmofAllowUpdate\\\":1,\\\"pmofAllowGenerater\\\":1,\\\"pmofAllowRepet\\\":1,\\\"pmofAllowValidator\\\":1,\\\"pmofAllowEmpty\\\":1,\\\"pmofType\\\":\\\"TIME\\\",\\\"pmofJavaType\\\":\\\"Date\\\",\\\"pmofSort\\\":0,\\\"options\\\":{\\\"isShow\\\":true,\\\"defaultValue\\\":[],\\\"readonly\\\":false,\\\"disabled\\\":false,\\\"editable\\\":true,\\\"clearable\\\":true,\\\"placeholder\\\":\\\"请选择时间选择器\\\",\\\"startPlaceholder\\\":\\\"开始时间\\\",\\\"endPlaceholder\\\":\\\"结束时间\\\",\\\"isRange\\\":true,\\\"arrowControl\\\":true,\\\"format\\\":\\\"HH:mm:ss\\\",\\\"required\\\":false,\\\"width\\\":\\\"100%\\\",\\\"table\\\":{\\\"search\\\":false,\\\"show\\\":false,\\\"width\\\":120,\\\"align\\\":\\\"center\\\"}}}]},\\\"key\\\":\\\"TIME_NYRBY\\\",\\\"model\\\":\\\"TIME_BEGIN\\\",\\\"rules\\\":\\\"[]\\\"},{\\\"type\\\":\\\"imgupload\\\",\\\"name\\\":\\\"网站ico\\\",\\\"icon\\\":\\\"icon-tupian2\\\",\\\"pmofAllowUpdate\\\":1,\\\"pmofAllowGenerater\\\":1,\\\"pmofAllowRepet\\\":1,\\\"pmofAllowValidator\\\":1,\\\"pmofAllowEmpty\\\":0,\\\"pmofLength\\\":1000,\\\"pmofType\\\":\\\"VARCHAR\\\",\\\"pmofJavaType\\\":\\\"String\\\",\\\"pmofSort\\\":0,\\\"likeSearch\\\":false,\\\"help\\\":\\\"标签:{@ms:file global.foot.ico/}\\\",\\\"options\\\":{\\\"isShow\\\":true,\\\"defaultValue\\\":[],\\\"required\\\":false,\\\"width\\\":\\\"\\\",\\\"tokenFunc\\\":\\\"funcGetToken\\\",\\\"token\\\":\\\"\\\",\\\"domain\\\":\\\"http://pfp81ptt6.bkt.clouddn.com/\\\",\\\"disabled\\\":false,\\\"limit\\\":1,\\\"multiple\\\":false,\\\"isQiniu\\\":false,\\\"action\\\":\\\"ms.manager+\'/file/upload.do\'\\\",\\\"table\\\":{\\\"show\\\":true,\\\"align\\\":\\\"left\\\"}},\\\"key\\\":\\\"IMGUPLOAD_KKLFY\\\",\\\"model\\\":\\\"ICO\\\",\\\"rules\\\":\\\"[]\\\"},{\\\"type\\\":\\\"imgupload\\\",\\\"name\\\":\\\"底部微信二维码\\\",\\\"icon\\\":\\\"icon-tupian2\\\",\\\"pmofAllowUpdate\\\":1,\\\"pmofAllowGenerater\\\":1,\\\"pmofAllowRepet\\\":1,\\\"pmofAllowValidator\\\":1,\\\"pmofAllowEmpty\\\":0,\\\"pmofLength\\\":1000,\\\"pmofType\\\":\\\"VARCHAR\\\",\\\"pmofJavaType\\\":\\\"String\\\",\\\"pmofSort\\\":0,\\\"likeSearch\\\":false,\\\"help\\\":\\\"标签:{@ms:file global.foot.qrCode/}\\\",\\\"options\\\":{\\\"isShow\\\":true,\\\"defaultValue\\\":[],\\\"required\\\":false,\\\"width\\\":\\\"\\\",\\\"tokenFunc\\\":\\\"funcGetToken\\\",\\\"token\\\":\\\"\\\",\\\"domain\\\":\\\"http://pfp81ptt6.bkt.clouddn.com/\\\",\\\"disabled\\\":false,\\\"limit\\\":1,\\\"multiple\\\":false,\\\"isQiniu\\\":false,\\\"action\\\":\\\"ms.manager+\'/file/upload.do\'\\\",\\\"table\\\":{\\\"show\\\":true,\\\"align\\\":\\\"left\\\"}},\\\"key\\\":\\\"IMGUPLOAD_MAOHJ\\\",\\\"model\\\":\\\"QR_CODE\\\",\\\"rules\\\":\\\"[]\\\"}]\",\"isWebSubmit\":false,\"html\":\"\\n<template id=\\\"custom-model\\\">\\n    <el-form ref=\\\"form\\\" :model=\\\"form\\\" :rules=\\\"rules\\\" label-width=\\\"120px\\\" label-position=\\\"right\\\" size=\\\"default\\\" :disabled=\\\"disabled\\\" v-loading=\\\"loading\\\">\\n            <!--电话号码-->\\n\\n\\t        <el-form-item  label=\\\"电话号码\\\" prop=\\\"tel\\\">\\n\\t            <el-input\\n                        v-model=\\\"form.tel\\\"\\n                         :disabled=\\\"false\\\"\\n                          :readonly=\\\"false\\\"\\n                          :style=\\\"{width:  \'100%\'}\\\"\\n                          :clearable=\\\"true\\\"\\n                        placeholder=\\\"请输入电话号码\\\">\\n                </el-input>\\n                <div class=\\\"ms-form-tip\\\">\\n标签:{ms:global.foot.tel/}                </div>\\n\\t        </el-form-item>   \\n        <!--底部服务时间-->\\n    \\n        <el-form-item  label=\\\"底部服务时间\\\" prop=\\\"timeBegin\\\">\\n             <el-time-picker\\n                  \\n                    v-model=\\\"form.timeBegin\\\"\\n                   \\n                    :is-range=\\\"true\\\"\\n               \\n                    :readonly=\\\"false\\\"\\n                    :disabled=\\\"false\\\"\\n\\t\\t\\t\\t\\t\\t\\t\\t\\t\\t:editable=\\\"true\\\" :clearable=\\\"true\\\"\\n                             value-format=\\\"HH:mm:ss\\\"\\n                    \\n                    :arrow-control=\\\"true\\\" :style=\\\"{width:\'100%\'}\\\">\\n            </el-time-picker>\\n                <div class=\\\"ms-form-tip\\\">\\n标签:{ms:global.foot.timeBegin/} -\\n{ms:global.foot.timeEnd/}                </div>\\n        </el-form-item>\\n   \\n        <!--网站ico-->\\n    \\n        <el-form-item  label=\\\"网站ico\\\" prop=\\\"ico\\\">\\n             <el-upload\\n                    :file-list=\\\"form.ico\\\"\\n                    :action=\\\"ms.manager+\'/file/upload.do\'\\\"\\n                    :limit=\\\"1\\\"\\n                    multiple\\n                    :disabled=\\\"false\\\"\\n                    :data=\\\"{uploadPath:\'/global/\',\'isRename\':true,\'appId\':true}\\\"\\n                    :on-remove=\\\"icoHandleRemove\\\"\\n                    :on-exceed=\\\"icoHandleExceed\\\"\\n                    :on-preview=\\\"icoHandlePreview\\\"\\n                    :on-success=\\\"icoSuccess\\\"\\n                    :on-error=\\\"icoError\\\"\\n                    accept=\\\"image/*\\\"\\n                    list-type=\\\"picture-card\\\">\\n                <i class=\\\"el-icon-plus\\\"></i>\\n                <template #tip>\\n                  <div class=\\\"el-upload__tip\\\">最多上传1张图片</div>\\n               </template>\\n            </el-upload>\\n                <div class=\\\"ms-form-tip\\\">\\n标签:{@ms:file global.foot.ico/}                </div>\\n        </el-form-item>\\n   \\n        <!--底部微信二维码-->\\n    \\n        <el-form-item  label=\\\"底部微信二维码\\\" prop=\\\"qrCode\\\">\\n             <el-upload\\n                    :file-list=\\\"form.qrCode\\\"\\n                    :action=\\\"ms.manager+\'/file/upload.do\'\\\"\\n                    :limit=\\\"1\\\"\\n                    multiple\\n                    :disabled=\\\"false\\\"\\n                    :data=\\\"{uploadPath:\'/global/\',\'isRename\':true,\'appId\':true}\\\"\\n                    :on-remove=\\\"qrCodeHandleRemove\\\"\\n                    :on-exceed=\\\"qrCodeHandleExceed\\\"\\n                    :on-preview=\\\"qrCodeHandlePreview\\\"\\n                    :on-success=\\\"qrCodeSuccess\\\"\\n                    :on-error=\\\"qrCodeError\\\"\\n                    accept=\\\"image/*\\\"\\n                    list-type=\\\"picture-card\\\">\\n                <i class=\\\"el-icon-plus\\\"></i>\\n                <template #tip>\\n                  <div class=\\\"el-upload__tip\\\">最多上传1张图片</div>\\n               </template>\\n            </el-upload>\\n                <div class=\\\"ms-form-tip\\\">\\n标签:{@ms:file global.foot.qrCode/}                </div>\\n        </el-form-item>\\n   \\n    </el-form>\\n</template>\\n\",\"id\":1,\"script\":\"var custom_model = Vue.component(\\\"custom-model\\\",{\\n    el: \'#custom-model\',\\n    data:function() {\\n        return {\\n\\t\\t\\tloading:false,\\n            disabled:false,\\n            modelId:0,\\n            modelName: \\\"foot\\\",\\n            //表单数据\\n            form: {\\n                linkId:0,\\n                    // 电话号码\\n                    tel:\'\',\\n                    //底部服务时间\\n          timeBegin:null,\\n                    // 网站ico\\n                    ico: [],\\n                    // 底部微信二维码\\n                    qrCode: [],\\n            },\\n\\n            rules:{\\n                        // 电话号码\\n                        tel: [{\\\"min\\\":0,\\\"max\\\":255,\\\"message\\\":\\\"电话号码长度必须为0-255\\\"}],\\n            },\\n        }\\n    },\\n    watch:{\\n    },\\n    components:{\\n    },\\n    computed:{\\n    },\\n    methods: {\\n      \\tlink:function(e,field,binds){\\n      \\t\\tlet that = this;\\n            binds.forEach(function(item){\\n  \\t\\t\\t\\tms.http.post(ms.manager+\'/project/form/link.do\', {id:that.modelId,field:item.field,value:e}).then(function (res) {\\n                    if(res.result && res.data) {\\n                        that.form[ms.util.camelCaseString(item.field)]=res.data[0][item.target];\\n                    }else{\\n                        that.$notify({\\n                            title: \'失败\',\\n                            message: res.msg,\\n                            type: \'warning\'\\n                        });\\n                    }\\n                })\\n\\n            });\\n      \\t},\\n           //底部服务时间时间格式化\\n           timeBeginFormat:function(row, column, cellValue, index){\\n\\n                return row.TIME_BEGIN+\\\" - \\\"+row.TIME_END;\\n            },\\n        // ico删除\\n        icoHandleRemove: function (file, files) {\\n        \\tvar index = -1;\\n        \\tindex = this.form.ico.findIndex(function (text) {\\n        \\t\\treturn text.uid == file.uid;\\n        \\t});\\n        \\tif (index != -1) {\\n        \\t\\tthis.form.ico.splice(index, 1);\\n        \\t}\\n        },\\n        //ico上传超过限制\\n        icoHandleExceed: function (files, fileList) {\\n        \\tthis.$notify({\\n        \\t\\ttitle: \'失败\',\\n        \\t\\tmessage: \'当前最多上传1个文件\',\\n        \\t\\ttype: \'warning\'\\n        \\t});\\n        },\\n        //ico预览\\n        icoHandlePreview: function (file){\\n\\t\\t\\t\\twindow.open(file.url);\\n        },\\n        //ico上传成功\\n        icoSuccess: function (response, file, fileList) {\\n        \\tif (response.result) {\\n        \\t\\tthis.form.ico.push({\\n        \\t\\t\\turl: response.data,\\n        \\t\\t\\tname: file.name,\\n        \\t\\t\\tuid: file.uid\\n        \\t\\t});\\n        \\t} else {\\n        \\t\\tthis.$notify({\\n        \\t\\t\\ttitle: \'失败\',\\n        \\t\\t\\tmessage: response.msg,\\n        \\t\\t\\ttype: \'warning\'\\n        \\t\\t});\\n        \\t}\\n        },\\n        //ico上传失败\\n        icoError: function (response, file, fileList) {\\n        \\tresponse = response.toString().replace(\\\"Error: \\\",\\\"\\\")\\n        \\tresponse = JSON.parse(response);\\n        \\tthis.$notify({\\n        \\t\\ttitle: \'失败\',\\n        \\t\\tmessage: response.msg,\\n        \\t\\ttype: \'warning\'\\n        \\t});\\n        },        // qrCode删除\\n        qrCodeHandleRemove: function (file, files) {\\n        \\tvar index = -1;\\n        \\tindex = this.form.qrCode.findIndex(function (text) {\\n        \\t\\treturn text.uid == file.uid;\\n        \\t});\\n        \\tif (index != -1) {\\n        \\t\\tthis.form.qrCode.splice(index, 1);\\n        \\t}\\n        },\\n        //qrCode上传超过限制\\n        qrCodeHandleExceed: function (files, fileList) {\\n        \\tthis.$notify({\\n        \\t\\ttitle: \'失败\',\\n        \\t\\tmessage: \'当前最多上传1个文件\',\\n        \\t\\ttype: \'warning\'\\n        \\t});\\n        },\\n        //qrCode预览\\n        qrCodeHandlePreview: function (file){\\n\\t\\t\\t\\twindow.open(file.url);\\n        },\\n        //qrCode上传成功\\n        qrCodeSuccess: function (response, file, fileList) {\\n        \\tif (response.result) {\\n        \\t\\tthis.form.qrCode.push({\\n        \\t\\t\\turl: response.data,\\n        \\t\\t\\tname: file.name,\\n        \\t\\t\\tuid: file.uid\\n        \\t\\t});\\n        \\t} else {\\n        \\t\\tthis.$notify({\\n        \\t\\t\\ttitle: \'失败\',\\n        \\t\\t\\tmessage: response.msg,\\n        \\t\\t\\ttype: \'warning\'\\n        \\t\\t});\\n        \\t}\\n        },\\n        //qrCode上传失败\\n        qrCodeError: function (response, file, fileList) {\\n        \\tresponse = response.toString().replace(\\\"Error: \\\",\\\"\\\")\\n        \\tresponse = JSON.parse(response);\\n        \\tthis.$notify({\\n        \\t\\ttitle: \'失败\',\\n        \\t\\tmessage: response.msg,\\n        \\t\\ttype: \'warning\'\\n        \\t});\\n        },        validate:function(){\\n            var b = false\\n            this.$refs.form.validate(function(valid){\\n                b = valid;\\n            });\\n            return b;\\n        },\\n        save:function(callback) {\\n            var that = this;\\n            var url = this.formURL.save.url;\\n            if (that.form.id > 0) {\\n                url = this.formURL.update.url;\\n            }\\n            this.$refs.form.validate(function(valid) {\\n                if (valid) {\\n                    var form = JSON.parse(JSON.stringify(that.form));\\n                         //底部服务时间\\n                        if(form.timeBegin){\\n                           form.timeEnd = form.timeBegin[1];\\n                           form.timeBegin = form.timeBegin[0];                            \\n                        }\\n                        form.ico = JSON.stringify(form.ico);\\n                        form.qrCode = JSON.stringify(form.qrCode);\\n                    form.modelId = that.modelId;\\n                    ms.http.post(url, form).then(function (res) {\\n                        if(callback) {\\n                            callback(res);\\n                        }\\n                    });\\n                } else{\\n                    callback({\\n                    result:false,msg:\'请检查表单输入项\'\\n                    });\\n                }\\n            })\\n        },\\n        //获取当前foot\\n        get:function(id) {\\n            var that = this;\\n            that.loading = true;\\n            ms.http.get(this.formURL.get.url, Object.assign({\\\"modelId\\\":that.modelId},this.formURL.get.params)).then(function (res) {\\n                if(res.result&&res.data){\\n                                          \\n                        //底部服务时间 \\n                     if(res.data.timeBegin && res.data.timeEnd) {\\n                        res.data.timeBegin = [ms.util.date.fmt(res.data.timeBegin,\'HH:mm:ss\'),ms.util.date.fmt(res.data.timeEnd,\'HH:mm:ss\')];\\n                       }\\n                      if (res.data.ico) {\\n                          res.data.ico = JSON.parse(res.data.ico);\\n                          res.data.ico.forEach(function (value) {\\n                             if(value.url.substr(0,7).toLowerCase() == \\\"http://\\\" || value.url.substr(0,8).toLowerCase() == \\\"https://\\\"){\\n\\t\\t\\t\\t\\t\\t\\t } else {\\n\\t\\t\\t\\t\\t\\t\\t\\tvalue.url = ms.base + value.url;\\n\\t\\t\\t\\t\\t\\t\\t }\\n                              \\n                          });\\n                      } else {\\n                          res.data.ico = [];\\n                      }\\n                      if (res.data.qrCode) {\\n                          res.data.qrCode = JSON.parse(res.data.qrCode);\\n                          res.data.qrCode.forEach(function (value) {\\n                             if(value.url.substr(0,7).toLowerCase() == \\\"http://\\\" || value.url.substr(0,8).toLowerCase() == \\\"https://\\\"){\\n\\t\\t\\t\\t\\t\\t\\t } else {\\n\\t\\t\\t\\t\\t\\t\\t\\tvalue.url = ms.base + value.url;\\n\\t\\t\\t\\t\\t\\t\\t }\\n                              \\n                          });\\n                      } else {\\n                          res.data.qrCode = [];\\n                      }\\n                    that.form = res.data;\\n                    that.loading = false;\\n                } else {\\n                    that.loading = false;\\n                }\\n            }).catch(function (err) {\\n                console.log(err);\\n                that.loading = false;\\n            });\\n        },\\n\\n    },\\n    created:function() {\\n        var that = this;\\n        //渲染create\\n        that.get(this.form.linkId);\\n    }\\n});\",\"sql\":\"\\n-- FOOT\\nCREATE TABLE  `{model}FOOT` (\\n    `id` BIGINT(19) UNSIGNED NOT NULL AUTO_INCREMENT,\\n    `TEL` VARCHAR(255) DEFAULT NULL COMMENT \'电话号码\',\\n    `TIME_BEGIN` TIME DEFAULT NULL COMMENT \'底部服务时间\',\\n    `TIME_END` TIME DEFAULT NULL COMMENT \'结束时间\',\\n    `ICO` VARCHAR(1000) DEFAULT NULL COMMENT \'网站ico\',\\n    `QR_CODE` VARCHAR(1000) DEFAULT NULL COMMENT \'底部微信二维码\',\\n    `LINK_ID` BIGINT(20) DEFAULT NULL,\\n    `CREATE_DATE` DATETIME DEFAULT NULL COMMENT \'创建时间\',\\n    `CREATE_BY` VARCHAR(50) DEFAULT NULL COMMENT \'创建人\',\\n    `UPDATE_DATE` DATETIME DEFAULT NULL COMMENT \'修改时间\',\\n    `UPDATE_BY` VARCHAR(50) DEFAULT NULL COMMENT \'修改人\',\\n    `DEL` INT(1) DEFAULT 0 COMMENT \'删除标记\',\\n    PRIMARY KEY (`ID`) USING BTREE\\n) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=DYNAMIC COMMENT=\'foot\';\\n\",\"tableName\":\"FOOT\"}', '', 'foot', 1, '', '[\n    {\n    \"model\":\"tel\",\n    \"key\":\"TEL\",\n    \"field\":\"TEL\",\n    \"javaType\":\"String\",\n    \"jdbcType\":\"VARCHAR\",\n    \"name\":\"电话号码\",\n    \"type\":\"input\",\n    \"length\":\"255\",\n    \"isShow\":true,\n     \"repeat\":false,\n     \"isSearch\":false\n    }\n    ,{\n    \"model\":\"timeBegin\",\n    \"key\":\"TIME_BEGIN\",\n    \"field\":\"TIME_BEGIN\",\n    \"javaType\":\"Date\",\n    \"jdbcType\":\"TIME\",\n    \"name\":\"底部服务时间\",\n    \"type\":\"time\",\n    \"fmt\":\"HH:mm:ss\",\n    \"endModel\":\"time_end\",\n    \"length\":\"0\",\n    \"isShow\":true,\n     \"repeat\":false,\n     \"isSearch\":false\n    }\n                ,    {\n    \"model\":\"timeEnd\",\n    \"key\":\"TIME_END\",\n    \"field\":\"TIME_END\",\n    \"javaType\":\"Date\",\n    \"jdbcType\":\"TIME\",\n    \"name\":\"结束时间\",\n    \"type\":\"time\",\n    \"fmt\":\"HH:mm:ss\",\n    \"length\":\"0\",\n    \"isShow\":false,\n     \"repeat\":false,\n     \"isSearch\":false\n    }\n\n    ,{\n    \"model\":\"ico\",\n    \"key\":\"ICO\",\n    \"field\":\"ICO\",\n    \"javaType\":\"String\",\n    \"jdbcType\":\"VARCHAR\",\n    \"name\":\"网站ico\",\n    \"type\":\"imgupload\",\n    \"length\":\"1000\",\n    \"isShow\":true,\n     \"repeat\":false,\n     \"isSearch\":false\n    }\n    ,{\n    \"model\":\"qrCode\",\n    \"key\":\"QR_CODE\",\n    \"field\":\"QR_CODE\",\n    \"javaType\":\"String\",\n    \"jdbcType\":\"VARCHAR\",\n    \"name\":\"底部微信二维码\",\n    \"type\":\"imgupload\",\n    \"length\":\"1000\",\n    \"isShow\":true,\n     \"repeat\":false,\n     \"isSearch\":false\n    }\n]\n\n', 'tag', '2024-12-27 09:39:01', NULL, '2024-11-25 11:44:38', NULL, 0, 0, 'global');

1.4. 自定义标签获取时间数据中时间多了个T(5.4.3及其以下版本处理)

以update_date(别名updateDate)为例,

通过string("yyyy-MM-dd HH:mm:ss") 自定义时间格式

最终格式 ${field.updateDate?replace("T"," ")?datetime?string("yyyy-MM-dd HH:mm:ss")}

1.5. 设置分页文章序号

<!-- 效果  xxx(文章标题)--10、xxx--11、xxx--12...   -->

<!-- 定义计算 上一页的index值  pageSize按需填写 -->
<!-- eg:当前为第二页 , pageSize=10 则index=(2-1)*10-->
<#assign index = (page.cur?number - 1) * pageSize/>

{ms:arclist size=pageSize ispaging=true}
<!-- 定义计算 当前的index值 -->
<!--计算后 result = 10,11,12... -->
<#assign result = index + field.index>
${field.title}--${result}
{/ms:arclist}

1.6. 标签解析报错 The following has evaluated to null or missing

提示信息一般表现为缺少了某个标签,或标签的某个属性丢失;

1、如果提示为field.date问题,优先查看 静态化报错

2、其他问题,建议先将开源中国最新的sql(mdiy_tag表)执行一遍;仍有问题,第一时间反馈,我们会立即解决

1.7. 生成报错?

1、标签没有正确的闭合{ms:page} 最后一个/符合不能少 正确:{ms:page /}

2、字符串类型参数没有加双引号,{ms:channel type=nav } 正确:{ms:channel type="nav" },注意:数值不需要

3、include标签使用了注释 <!-- <#include "url"> --> 正确:<#-- <#include "url"> -->

报错分析参考

1.8. 标签能嵌套使用吗?

目前只有部分标签支持嵌套,具体可以参考下方标签说明。

  1. 多级channel嵌套
  2. channel 与 arclist嵌套
  3. channel中使用include
  4. arclist与data嵌套

1.9. 怎么获取动态的栏目或文章的typeid?

当你在某个列表页时,使用ms:channel、ms:arclist两个标签时,如果不写typeid,会自动获取当前页面所属栏目的typeid值

1.10. 文章点击量不自动增加

文章点击量是需要使用了的点击量标签之后前后端数据才会增加,同一台电脑多次访问只会增加一次点击量,注意后台的点击数量在去点击文章,看点击量是否增加。

1.11. 用图片标签获取出来的图片总是裂开

如果是开源版,图片标签前面需要加上域名标签({ms:global.host/})才会正常显示图片。

1.12. 标签有类似if判断的功能吗?

mcms4.7.0之后的版本可以支持简单的if判断,5.1之后支持freemarker if指令

<!-- freemarker if简单使用 -->
<!-- eg: 文章如果没有上传缩略图就显示一张默认图片 -->
{ms:arclist}
<#if field.litpic>
 <img src="{@ms:file field.litpic/}"/>
<#else>
 <img src="默认图片"/>
</#if>
{/ms:arclist}

使用参考

1.13. 标签属性使用无效

5.1之后属性为字符串类型的需要加引号使用例如:type="son"

1.14. 页面静态化没有更新

1、按shift刷新浏览器 清除浏览器缓存
2、如果清楚缓存还不行,直接编辑一下文章,再静态化刷新页面

1.15. css文件、js文件能用标签吗?

不能,因为标签需要mcms系统解析之后才会渲染效果,而系统不会渲染引入css与js文件

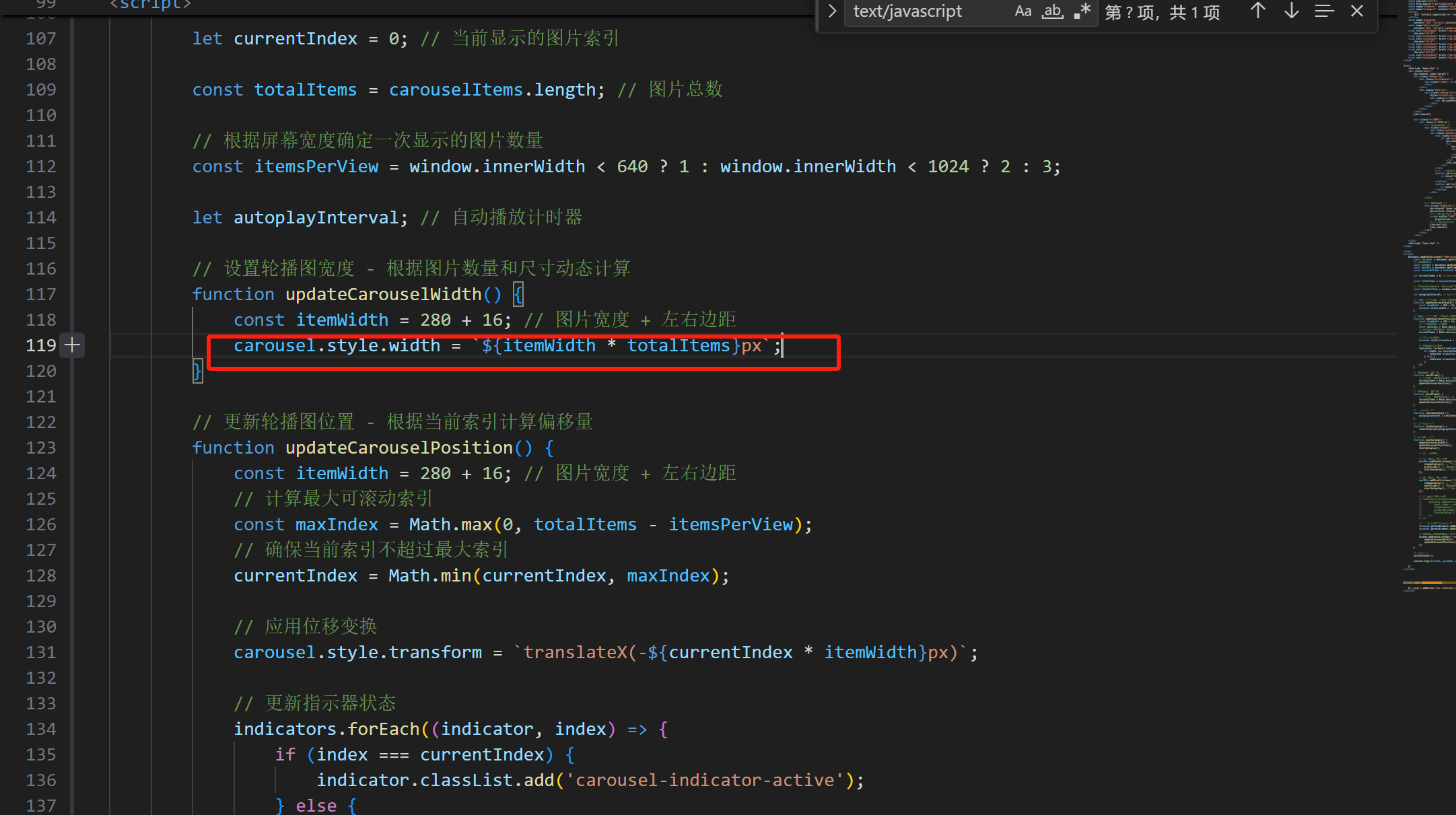

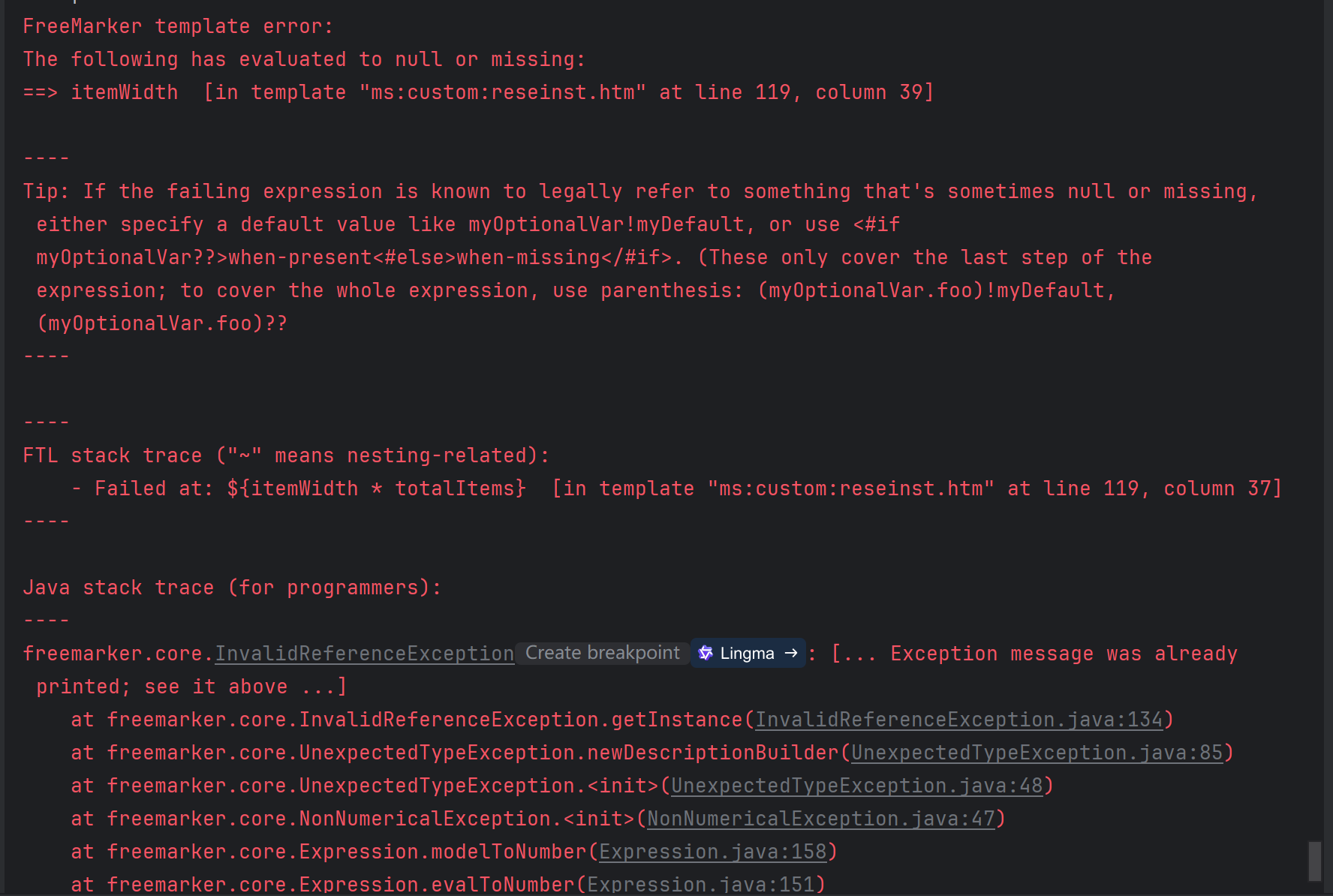

1.16. 在模板中使用了js的模板表达式用法如${xx * xx},导致报错

Alt text Alt text

原因:这种模板表达式用法与freemarker的标签解析冲突了,导致报错。

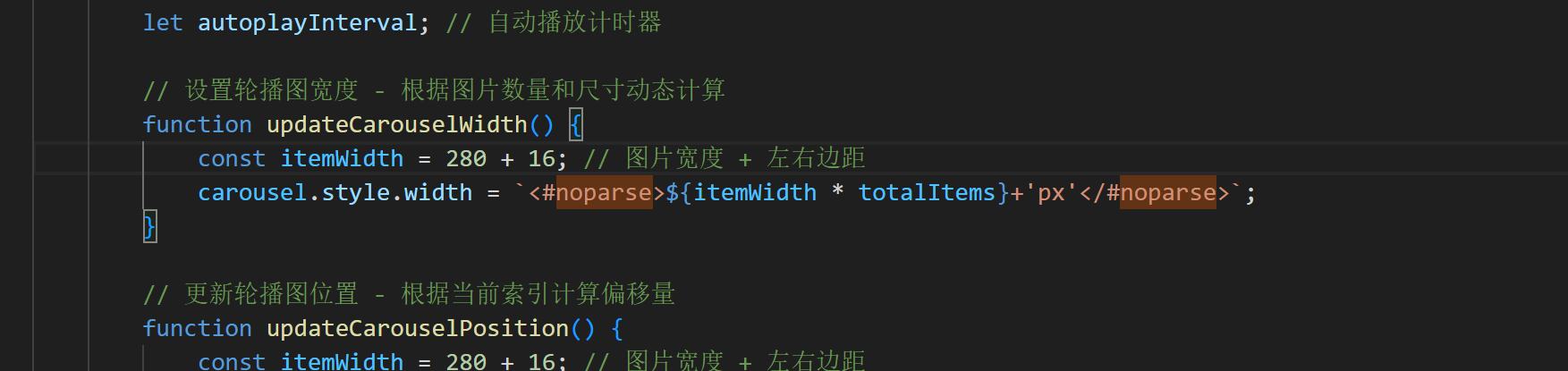

解决方式:在模板中使用noparse标签包裹模板表达式,如 <#noparse> ${xx * xx} </#noparse> Alt text
